GT300

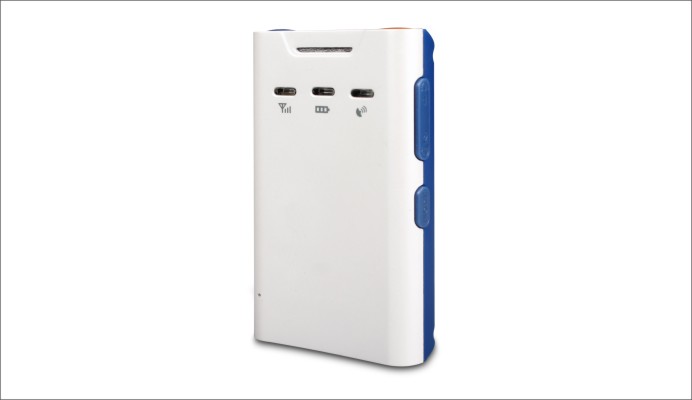

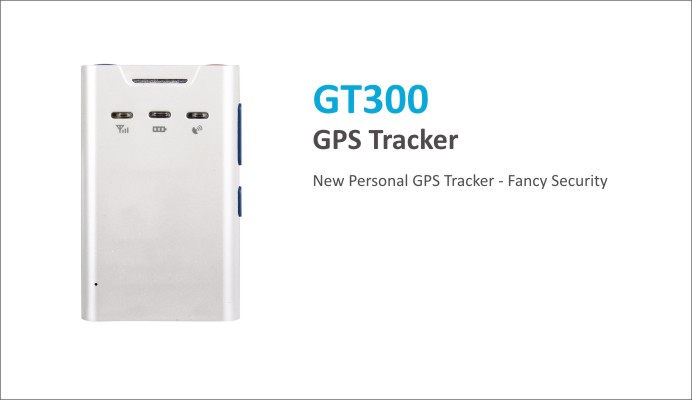

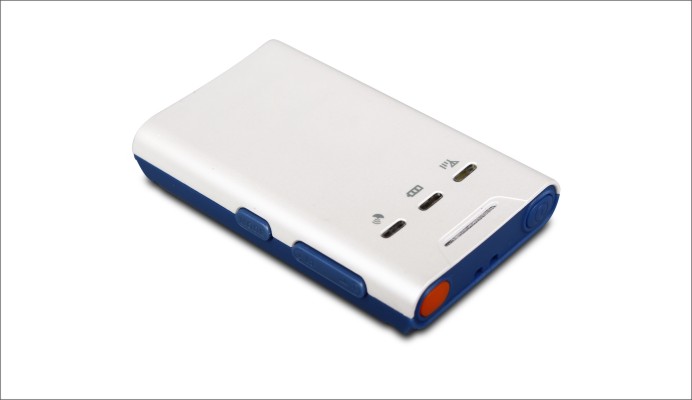

GT 300 GPS Personal tracker

Dowanload PDF

SMS SMS FORMAT SMS RESPONSE





Specification

Weight 54g
Dimensions 73.0(L)× 45.0(W) × 15.8(H)mm
Operating temperature -20℃- 80℃
Operating humidity 5% - 95%
LED indicator Three LED indicators: GPS- Blue; GSM- Green; Power- Red
Keypad indicator SOS, Mode, Up, Down, ON/OFF
Key for emergency call SOS
GSM 850/ 900/ 1800/ 1900 MHz
GPRS Class12, TCP/ IP built-in GSM Module
GPS MT3336
GPS Channels 22
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
Locating time cost Hot start: <2 sec(open sky)
Warm start: <15 sec
Cold start: <38 sec(open sky)
Antenna Built-in GSM quad band antenna, GPS high gain antenna
Battery 3.7VDC/1100mAh
Standby time 98hours
Call time 5.5hours

Features

  • GPS real time tracking
  • Support TCP/UDP modes
  • GT 300 MHz Quad-band
  • GPS / GSM / GPRS wireless network
  • Suitable for cargo, container and personal tracking
  • 3 optional mode: Arm, Disarm and Send location to platform by adjustable time
  • 1100mAh large capacity internal battery for long working time
  • Voice Monitor function
  • Phone call avaliable - 2 family numbers supported
  • SOS emergency alarm
  • Geo-fence alarming function
  • Web-based online tracking platform
